RT223/283/323

RT403 HEAVY DUTY

RT SERIES

The 4x4 drive Terberg RT223/283/323 RoRo tractors with Ergoturn® 180° swivelling seat are designed for operating in RoRo vessels with steep ramps and in industrial yards because of their robust design and powerful driveline.

A 4x2 drive model (TT223) is available for applications that do not require 4x4 drive and do require a 180° swivelling seat.

STAGE V
ENGINE
4X4 DRIVE

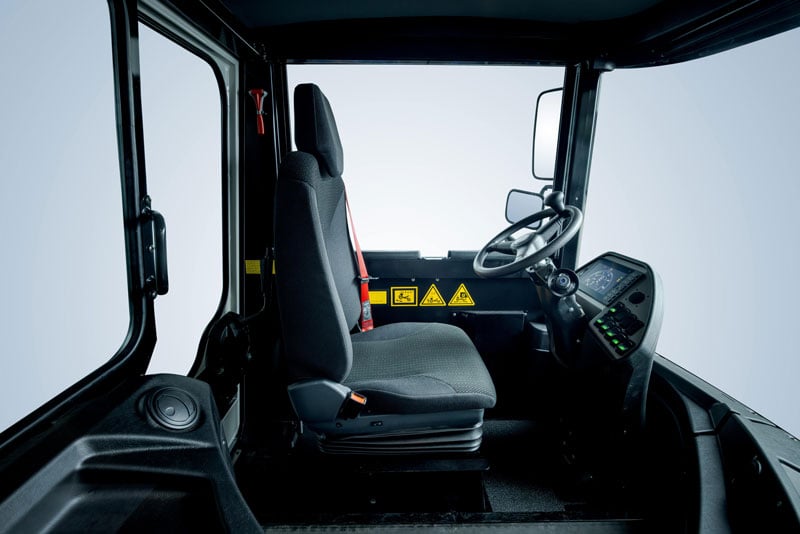

ERGOTURN® 180°
SWIVELLING SEAT
TERBERG CONNECT
SPECIFICATIONS RT223/283/323

  • 4 x 4
  • GCW: 150 t (RT223) 165 t (RT283/323) depending on operating conditions
  • Engine RT223: Volvo TAD880VE-160 kW Stage V
  • Engine RT283: Volvo TAD882VE 210 kW Stage V
  • Engine RT323: Volvo TAD883VE-235 kW Stage V
  • Transmission: ZF 6WG211 (6F-3R)
  • Front axle capacity: 16 t @20 km/h
  • Rear axle capacity: 38 t @20 km/h
  • 5th wheel: Terberg cast steel plate 2"
  • 5th wheel capacity: 36 t
  • 5th wheel lifting capacity: up to 35 t
  • Lowest 5th wheel height: 962 mm
  • Ergoturn® 180° swivelling seat
  • Left and right-hand drive available

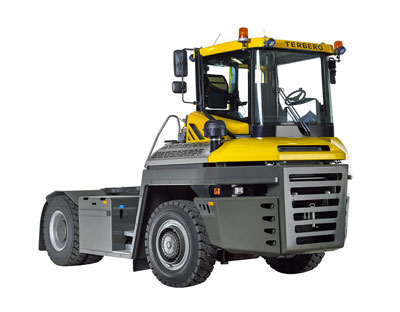

RT403 HEAVY DUTY TRACTOR

The Terberg RT403 is designed for extremely demanding applications in steelworks and other industrial plants. Its fifth wheel lifting capacity of 45 tonnes and heavy-duty chassis and power train design make the RT403 the perfect choice for the steel industry, extremely heavy RoRo operations and handling MTS trains.

Depending on the application and operating environment, the GCW can reach up to 375 tonnes.

STAGE V
ENGINE
4X4 DRIVE
ERGOTURN® 180°
SWIVELLING SEAT
TERBERG CONNECT
SPECIFICATIONS RT403

  • 4 x 4
  • GCW: 200 t depending on operating conditions
  • Engine: Volvo TAD1183VE-315kW Stage V
  • Transmission: ZF 6WG310 (6F-3R)
  • Front axle capacity: 20 t @ 20 km/h / 25 t @ 10 km/h
  • Rear axle capacity: 45 t @ 20 km/h / 48 t @ 10 km/h
  • 5th wheel: 2" Cardanic cast steel plate
  • 5th wheel capacity: 45 t
  • 5th wheel lifting capacity: up to 45 t
  • Lowest 5th wheel height: 1,335 mm
  • Ergoturn® 180° swivelling seat
  • Left and right-hand drive: available

RORO OPERATIONS AT ZEEBRUGGE

HEAVY DUTY RT403 TERMINAL OPERATIONS

WHERE SPECIAL COMES AS STANDARD
