BC183



BC202-EV

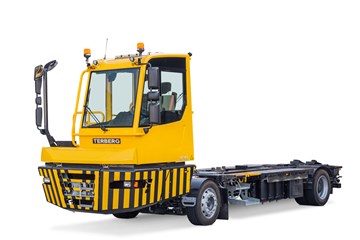

BC183 SWAP BODY CARRIER

The Terberg Body Carrier excels at shunting swap bodies at distribution centres due to its agility and small turning circle. It is also used for applications such as carrying deicing fluid containers at airports.

The design accommodates a range of swap body types and there are several options for locking the bodies to the vehicle. BC units can optionally be fitted with a lifting fifth wheel to handle semitrailers.

5TH WHEEL
OPTION
TERBERG CONNECT
EASY MAINTENANCE
ELECTRIC
AVAILABLE



SPECIFICATIONS

  • 4 x 2
  • GCW: 50 t (depending on operating conditions)
  • Engine: Cummins B4.5-173 (Tier 4f/Stage V)
  • Transmission: ZF 3WG161 (3F-3R)
  • Front axle capacity: 11 t @20 km/h
  • Rear axle capacity: 20 t @20 km/h
  • 5th wheel: optional
  • 5th wheel capacity: 15 t (optional)
  • Seat position: Forward facing
  • Left and right-hand drive

BC202-EV ELECTRIC SWAP BODY CARRIER

The new generation EV tractor technology introduced in 2020 delivers significant improvements. You can choose from a number of battery capacity combinations and select the option best suited for your operations.

The performance of the new electric motor is similar to that of a diesel engine, and it does not lead to CO2 and NOx emissions at the point of use. In addition the driver experiences hardly any vibrations and noise.

The new batteries have been thoroughly tested and certified by Millbrook Proving Ground, to the ECE-R100 rev. 2 regulation. The universal charging connector complies with the CCS2.0 automotive standard.

The EV drive has regenerative braking to reduce the energy consumption and this also reduces wear on the brakes.

The EV system has fewer moving parts than a diesel engine and the previous EV generation, resulting in lower maintenance costs.

NEXT GENERATION
GREAT
RANGE
TERBERG CONNECT
EASY MAINTENANCE
SPECIFICATIONS

  • 4 x 2
  • Battery pack combination options up to 148 kWh
  • Batteries and vehicle comply with ECE-R100 rev. 2
  • Worldwide use, at high and low temperatures (-30°C up to +50°C*)
  • Charger connector complies with CCS2.0 automotive standard
  • Traction motor: ZF CeTrax
  • Motor performance similar to tractors with a diesel engine
  • Regenerative braking
  • Front axle capacity: 11t @20 km/h
  • Rear axle capacity: 20t @20 km/h
  • 5th wheel: optional
  • 5th wheel capacity: 15t (optional)
  • Seat position: Forward facing
  • Left and right-hand drive: Low-level cabin with inboard door, forward facing

* Additional measures may be required in extreme temperatures.

Colissimo raises efficiency with Terberg Swap Body......
Jul 22
Colissimo raises efficiency with Terberg Swap Body Carriers

Colissimo is a parcel division of Groupe La Poste, the French national post office, and specialises in Business-to-Consumer deliveries. Because of the rapid growth in the parcel volume the company...

Terberg's new BC183 Swap Body Carrier offers even mo......
May 19
Terberg's new BC183 Swap Body Carrier offers even more comfort and efficiency

Terberg has upgraded its BC Swap Body Carrier (BC183) with a completely new cabin, stage V certified engine and a range of smaller improvements.

Terberg delivers fully electric BC202-EV Body Carrie......
Sep 08

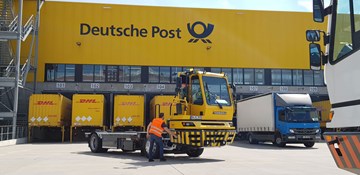

Terberg delivers fully electric BC202-EV Body Carriers to Deutsche Post
